Stucuk

Betreff des Beitrags: Roq Viewer

Verfasst: Sa Jan 01, 2005 04:43

DGL Member

Registriert: Mi Jul 21, 2004 22:39
Beiträge: 360
Wohnort: UK, Scotland

The attached source is Osman Turan's ROQ code converted from GLScene into OpenGL. Osman Turan's has Sound, my ver doesn't since i don't currently know how to setup FMOD to accept "raw" sound.

P.S is OpenGL defaultly 16 bit or something? I had to divide the RGB values by 2 b4 they went into the glTexImage2D...... (gave me a headake wondering why the colours were screwed to start with)

Dateianhänge:

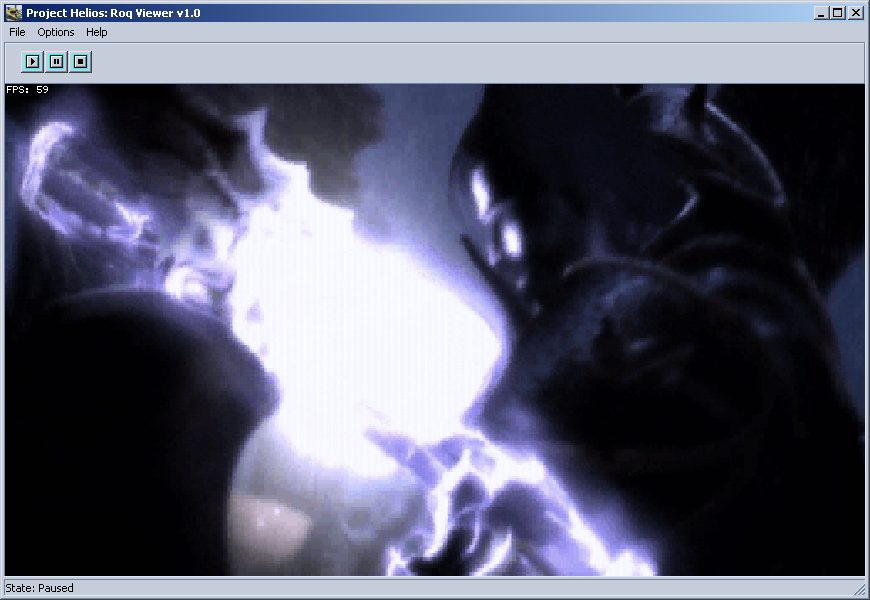

HeliosRoq.jpg [55.3 KiB]
107-mal heruntergeladen

HeliosROQ.zip [111.87 KiB]
272-mal heruntergeladen

_________________
Free Map Editor - Game Requirements - Stucuk.Net
-Stu

Nach oben

Stucuk

Betreff des Beitrags:

Verfasst: Do Feb 17, 2005 22:15

DGL Member

Registriert: Mi Jul 21, 2004 22:39
Beiträge: 360
Wohnort: UK, Scotland

V1.1

Added: Loop Mode
Added: Sound (Not Perfect, but seems the same as the original SDL sound)
Added: Bilinear and Trilinear options
Added: Support for multipul Roq's (Usefull in levels where u have dynamic textures on some of the faces, i.e in a cinema level or on a tv)

Source Attached. Note: FMOD DLL needs to be placed in the same dir as the program.

Dateianhänge:

Dateikommentar: FMod Dll

fmod.zip [143.57 KiB]
270-mal heruntergeladen
Dateikommentar: Source Code

HeliosRoq.zip [224.36 KiB]
274-mal heruntergeladen

Helios_Roq.jpg [73.86 KiB]
80-mal heruntergeladen

_________________
Free Map Editor - Game Requirements - Stucuk.Net
-Stu

Nach oben

Tokter

Betreff des Beitrags:

Verfasst: Fr Feb 18, 2005 14:45

DGL Member

Registriert: Fr Dez 19, 2003 14:27
Beiträge: 107
Wohnort: Indianapolis, USA

How do you create roq's? Is there a free encoder that can convert avi to roq?

Nach oben

Stucuk

Betreff des Beitrags:

Verfasst: Fr Feb 18, 2005 21:34

DGL Member

Registriert: Mi Jul 21, 2004 22:39
Beiträge: 360
Wohnort: UK, Scotland

Quake Video Maker can create ROQ's and it can import AVI's. It can be found here

Note: i don't know how good the app is. And im currently unsure how u add sound to the projects. There is an official ROQ encoder somewhere.

_________________
Free Map Editor - Game Requirements - Stucuk.Net
-Stu

Nach oben

Stucuk

Betreff des Beitrags:

Verfasst: Di Jul 26, 2005 08:59

DGL Member

Registriert: Mi Jul 21, 2004 22:39
Beiträge: 360
Wohnort: UK, Scotland

Still can't get the sound to be perfect. The link below includes the source and exe.

In Helios_ROQ_Engine.pas uncommenting the define at the top ({//$DEFINE ROQ_SOUND_1}) turns on the experimental sound. Which should (i think.. tho it doesn't) work perfectly..... Basicaly when its enabled when new sound is read from the frame its shoved into the audiobuffer and reuploaded to fmod. all of the sound that hasn't been played in the current buffer is moved to the new buffers start, then the new sound is added afterwards.

Code:


Procedure BuildAudioBuffer(BytesRead,CurAudioBufferLength : Integer; var Cinematic : PCinematic);
var
BytesRemaining,ByteCount : Integer;
begin

ByteCount := CurAudioBufferLength-BytesRead;
Move(Cinematic.AudioBuffer2[BytesRead],AudioBuffer[0],ByteCount);

BytesRemaining := Min(65536,Cinematic.AudioSampleOffset);

Move(Cinematic.AudioBuffer[0],AudioBuffer[ByteCount],BytesRemaining);

end;


{$IfDef ROQ_SOUND_1}
    BytesRead := (FSOUND_GetCurrentPosition(Cinematic.FmodEmitterID));

    If (Cinematic.CurAudioBufferLength-BytesRead > 0) and (BytesRead > 0) then
    begin

    FillChar(AudioBuffer[0], Cinematic.AudioSampleCount * SizeOf(SmallInt), 0);
    BuildAudioBuffer(BytesRead,Cinematic.CurAudioBufferLength,Cinematic);

    FSOUND_Sample_Upload(Sound.FEmitters[Cinematic.FmodEmitterID].SamplePtr,@AudioBuffer[0],FSOUND_SIGNED);
    end
    else  {$EndIf}


- Helios Roq 26/7/2005 (700kb approx)

_________________
Free Map Editor - Game Requirements - Stucuk.Net
-Stu
